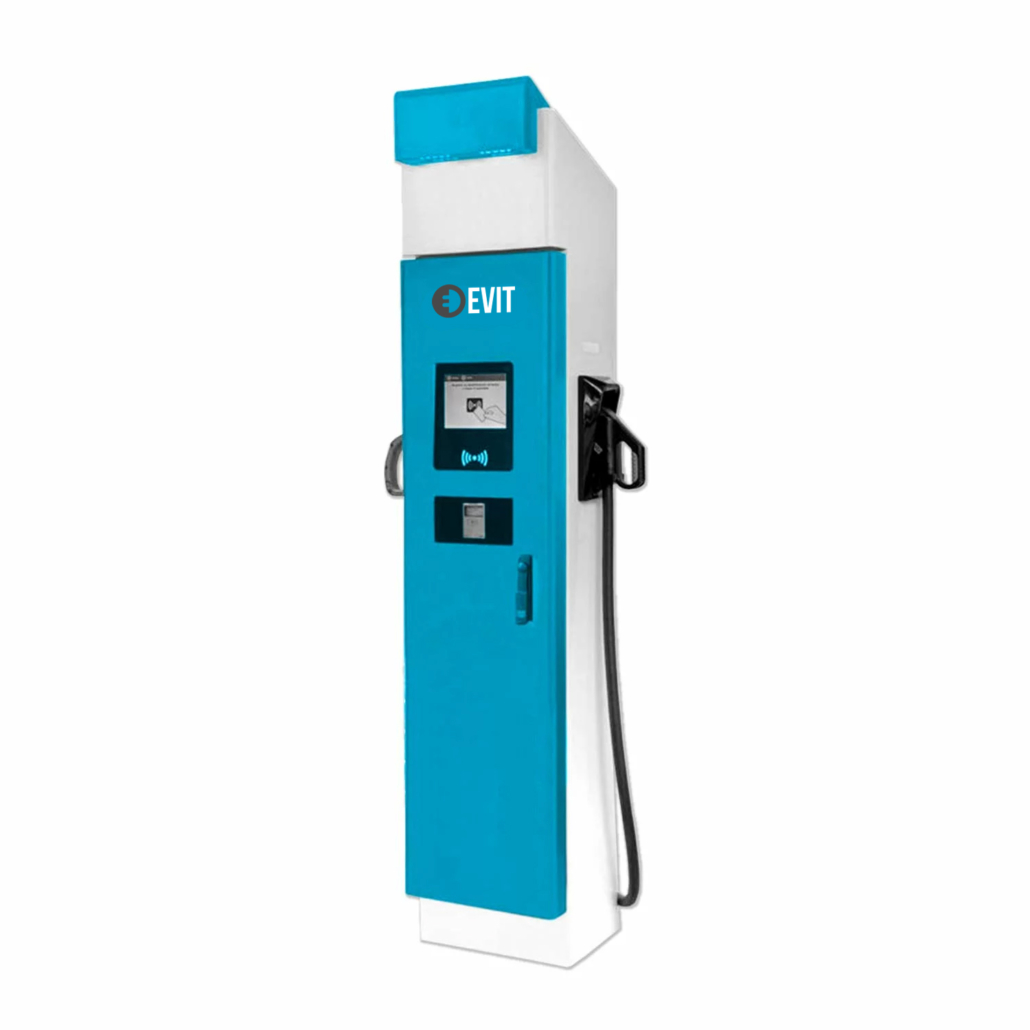

Raption 150
Technical Specifications
Maximum output power | 150 kW |
Compliance | CE / Combo-2 CHAdeMO compatible |
Ambient temperature storage | – 20 ºC to + 60 ºC |
Cable Length | 5 m |
AC Voltage | 400V AC +/- 10% |
Maximum AC input current | 237A |
Required power supply capacity | 163kVA |
Overcurrent protection | MCB |
Safety protection (pu) | RCD Type B |
Interface protocol | OCPP 1.5 or OCPP 1.6J |
Display HMI | 8″ anti-vandal colour touchscreen |
Wireless Communication | 4G LTE /WiFi Hotspot/GPRS/GSM |
